Notebook - Visualisation in EDA

Notebook - Visualisation in EDA#

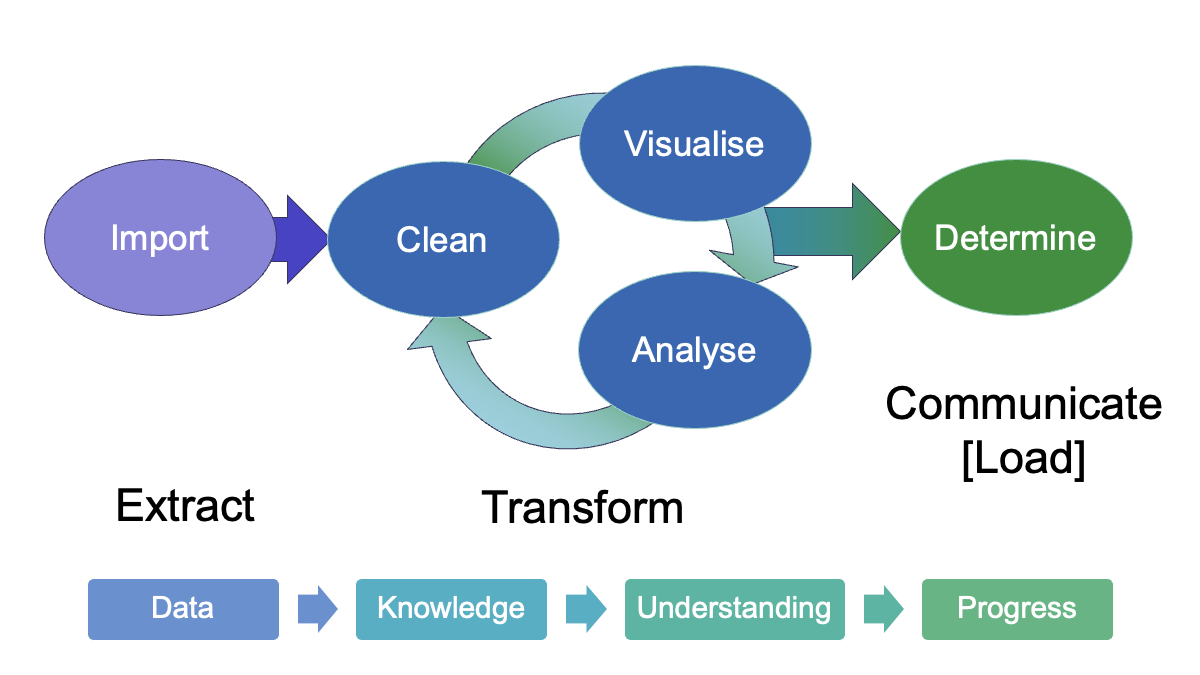

data process

Visualisation#

The simple graph has brought more information to the data analyst’s mind than any other device.

—John Tukey

Hide code cell source
# Import statements
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import seaborn as sns
from sklearn.metrics import r2_score
Hide code cell source
# set mpl fonts
plt.rcParams['font.sans-serif'] = ['Arial', 'Helvetica', 'Lucida Grande', 'Verdana']
Hide code cell source
# Helper functions for plotting
def get_stats(y: pd.Series) -> tuple[float, float]:
#    stats = (np.mean(y), np.std(y), np.corrcoef(x, y)[0][1])
    stats = (y.mean(), y.std())
    return stats

def add_stats(ax, x, y):
    mu, sigma = get_stats(y)
    r = np.corrcoef(x, y)[0][1]
    stats_text = (f'Mean y $\\mu$ = {mu:.2f}\n'
                  f'Stdev. y $\\sigma$ = {sigma:.2f}\n'
                  f'Correlation $r$ = {r:.2f}')
    ax.text(0.95, 0.05, stats_text, fontsize=9,
            transform=ax.transAxes, horizontalalignment='right')

def get_linear_fit(x, y):
    model = np.polyfit(x, y, deg=1) # y = mx + c (m = gradient, c = intercept)
    m, c = model
    predict = np.poly1d(model)
    r2 = r2_score(y, predict(x))
    return m, c, r2

def add_fit(ax, x, y):
    m, c, r2 = get_linear_fit(x, y)
    ax.axline(xy1=(0, c), slope=m, color="red", linewidth=1) # xy1 provides defined point for line to pass through
    fit_text = (f"Fit\nGradient: {m:.2f}\nIntercept: {c:.2f}\n"
                f"y = {m:.2f}x + {c:.2f}\n"
                f"$r^2$ = {r2:.2f}")
    ax.text(0.05, 0.95, fit_text, fontsize=9,
            transform=ax.transAxes, horizontalalignment='left', verticalalignment="top")

Anscombe’s quartet#

Anscombe’s quartet (please don’t click the link until after you have worked through the notebook) consists of four simple datasets, each consisting of 11 pairs of x and y values.

Based on the statistical measures of mean, standard deviation and the correlation coefficient between the two variables, the datasets look close to identical. The data highlights the importance of visualisation in EDA and going beyond looking at the simple summary statistics.


# The csv contains pairs of (xy) data, so (x1, y1) form the first set of data, (x2, y2) is the second, etc.

anscombe_df = pd.read_csv("data/anscombe_quartet.csv")
anscombe_df
x1 y1 x2 y2 x3 y3 x4 y4
0 10 8.04 10 9.14 10 7.46 8 6.58
1 8 6.95 8 8.14 8 6.77 8 5.76
2 13 7.58 13 8.74 13 12.74 8 7.71
3 9 8.81 9 8.77 9 7.11 8 8.84
4 11 8.33 11 9.26 11 7.81 8 8.47
5 14 9.96 14 8.10 14 8.84 8 7.04
6 6 7.24 6 6.13 6 6.08 8 5.25
7 4 4.26 4 3.10 4 5.39 19 12.50
8 12 10.84 12 9.13 12 8.15 8 5.56
9 7 4.82 7 7.26 7 6.42 8 7.91
10 5 5.68 5 4.74 5 5.73 8 6.89

We can compare the some simple summary statistics for the x and y columns of each dataset.

The mean and standard deviation give a measure of the centre and its spread, so we can look at those. Pearson’s correlation coefficient, \(r\) measures the linear correlation between the x and y variables.

y_cols = ["y1", "y2", "y3", "y4"]
x_cols = ["x1", "x2", "x3", "x4"]

print("Summary statistics for x data:")
display(anscombe_df[x_cols].describe().loc[["count","mean", "std"]])

print("Summary statistics for y data:")
display(anscombe_df[y_cols].describe().loc[["count","mean", "std"]])


for idx, dataset in enumerate(zip(x_cols, y_cols)):
    print(f"Dataset {idx+1}")
    pearson_r = np.corrcoef(anscombe_df[dataset[0]], anscombe_df[dataset[1]])[0][1]
    print(f"Pearson correlation coefficient: {pearson_r:.3f}\n")

Summary statistics for x data:
x1 x2 x3 x4
count 11.000000 11.000000 11.000000 11.000000
mean 9.000000 9.000000 9.000000 9.000000
std 3.316625 3.316625 3.316625 3.316625
Summary statistics for y data:
y1 y2 y3 y4
count 11.000000 11.000000 11.000000 11.000000
mean 7.500909 7.500909 7.500000 7.500909
std 2.031568 2.031657 2.030424 2.030579
Dataset 1
Pearson correlation coefficient: 0.816

Dataset 2
Pearson correlation coefficient: 0.816

Dataset 3
Pearson correlation coefficient: 0.816

Dataset 4
Pearson correlation coefficient: 0.817

The summary statistics for each of the x columns and y columns are the same to two decimal places (the same precision as the data itself). The correlation coefficients are also the same.

So from these measures, the four datasets look very similar. To check this, we can visualise the datasets as a set of scatter plots.

# Plotting function
def anscombe_plots(ans_df=anscombe_df, show_stats=False, show_fit=False):
    """Draw a 4x4 grid showing plots of the Anscombe quartet data"""

    INCLUDE_STATS = show_stats
    INCLUDE_FIT = show_fit

    fig, axs = plt.subplots(2,2, sharex=True, sharey=True, figsize=(8, 8))

    for i, ax in enumerate(axs.flat):
        x = ans_df.iloc[:, 2*i]
        y = ans_df.iloc[:, 2*i+1]
        ax.scatter(x, y)
        ax.set_xlabel("x")
        ax.set_ylabel("y")
        data_label = f"Data {i+1}"
        ax.text(0.95, 0.3, data_label, fontsize=16, transform=ax.transAxes, horizontalalignment="right", verticalalignment='top')

        if INCLUDE_STATS:
            add_stats(ax, x, y)

        if INCLUDE_FIT:
            add_fit(ax, x, y)


    plt.xlim(0, 20)
    plt.ylim(0, 14)
    plt.xticks([5, 10, 15, 20])
    plt.tight_layout()
    plt.show()

anscombe_plots(anscombe_df, show_stats=True, show_fit=False)
Hide code cell output

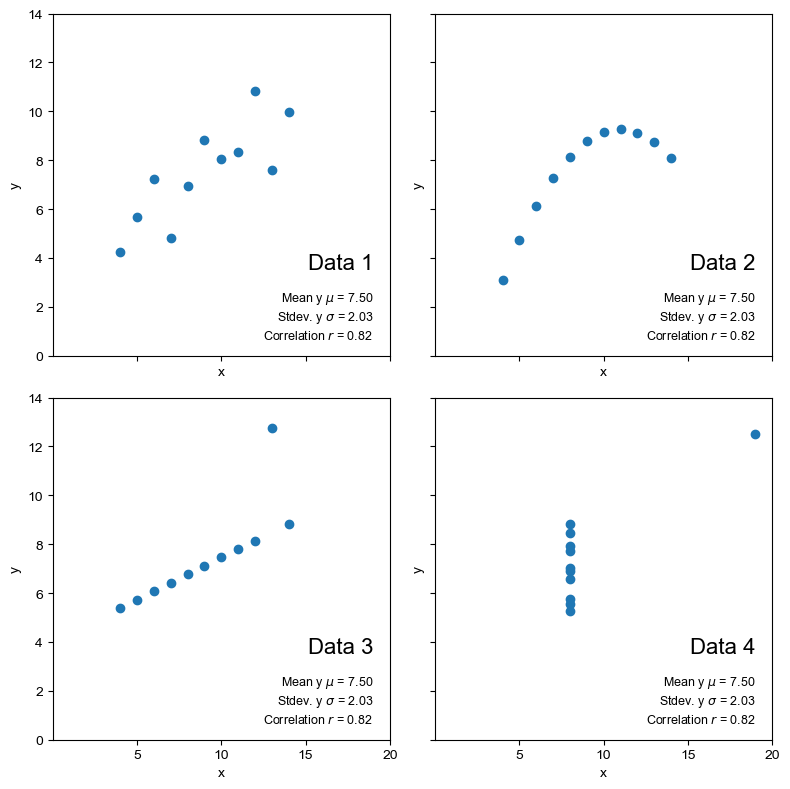

../_images/7dd54ecaa757a314231735c48621d9f1fd834c057de5ebbb9b8572cdab3a12e2.png

From the scatter plots we can immediately see that the datasets are quite distinct. If we calculate a linear regression line through the data, do the coefficients of the equation help to distinguish the data numerically?

anscombe_plots(anscombe_df, show_stats=True, show_fit=True)
Hide code cell output

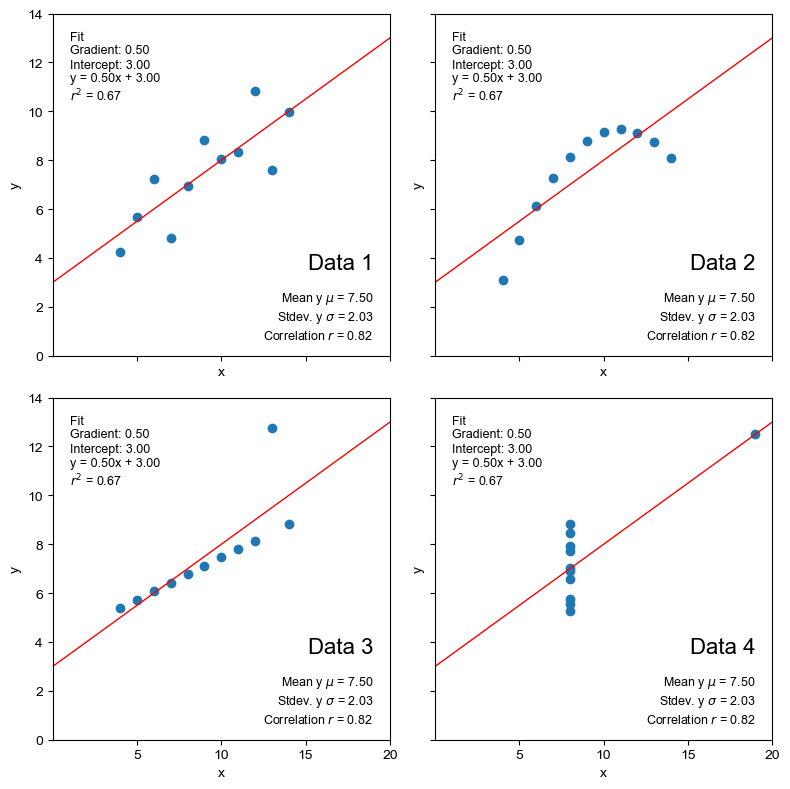

../_images/ca1676db9c50919d86aca7d61877310ef32ccbdbe15f55622fc9dc298c5d9bcd.png

The best fit line is also identical and the r-squared value indicates that numerically, at least, it fits all of the datasets equally well (or badly).

However, we can see from the visualisations that the regression line is only really appropriate for the first dataset.

If we look at some of the other descriptive statistics, particularly relating to the data distribution (max/min, percentiles), these show there are differences between the data. But the simple scatter plot visualisations make the contrasts unmissable.

In the case of Anscombe’s quartet, the scatter plots are sufficient to highlight the differences. For more complex data, there are other visualisations that highlight the differences between the distributions of the datasets.

Key points summary#

  • Visualisation is an essential part of exploratory data analysis.

    • Always explore your datasets visually before applying models or drawing conclusions.

“The first step in analyzing data is to look at it.”

—John Tukey

Things to try/consider#

See also

Another dataset, called the Datasaurus Dozen has been compiled to highlight how valuable visualisation is when assessing data. Data is available here

In the case of Anscombe’s quartet, the scatter plots are sufficient to highlight the differences.

For more complex data, there are other visualisations that highlight the differences between the distributions of the datasets. The seaborn visualisation library makes it particularly straightforward to look at distributions of multiple variables and correlations between variables.

See also

Plotting with Seaborn

What kinds of plot might help to highlight the differences between the datasets or identify issues that might affect how the data is modelled, e.g. for dataset 3, there is a single isolated point; how does this affect the best-fit linear model; how might this be identified?
