Workshop - Exploratory Data Analysis

In this workshop, we will work with a dataset of thermochemical data for some molecules to explore what features or descriptors are influential in their melting and/or boiling points.

Useful resources

We will be using some of the python libraries you have already seen and Seaborn, which you might not have yet. Here are some quick start guides and/or tutorials that might come in useful.

• Pandas

  • 10 minutes to pandas

• Matplotlib

  • Quick start guide

• RDKit

  • Getting started with the RDKit in Python

  • RDKit tutorial from 2021 - this covers a lot of ground. We won’t be talking about reactions (towards end of notebook)

  • There are also lots of videos on YouTube and of course ChatGPT (though I am not sure how well it does with RDKit, probably because the documentation is patchy).

You might also find some useful bits and pieces in the Molecular fingerprints notebook in the module book.

Visualising factors affecting thermochemical properties
of organic compounds

Let’s start by importing some libraries:

• time (needed to include a sleep)

• requests

• pandas

• numpy

• matplotlib

• seaborn

# TODO: Write your import statements here.

import requests
import time

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

# rdkit has a complicated structure, so we will start with these and maybe add some later

from rdkit import Chem
from rdkit.Chem import (
                        AllChem,
                        rdCoordGen,
                        Draw,
                        rdFingerprintGenerator,
                        PandasTools,
                        Descriptors
                        )

from rdkit.Chem.Draw import IPythonConsole
from rdkit import DataStructs

from IPython.display import SVG
from ipywidgets import interact,fixed,IntSlider

Loading the data

The data is stored in a flat csv file in the data directory called alcohol_acid_phys_data.csv.

# TODO:

# 0. Check the data in the file (try the 'head' command)
# 1. Read the data into a pandas dataframe
# 2. Display the dataframe

# 0. Check the data in the file (try the 'head' command)

!head data/alcohol_acid_phys_data.csv

Class,IUPAC name,Common name,#C,#H,#O,Molweight g/mol,mp / °C,bp / °C,density / g/ml,pKa(1),pKa(2)
1-alkanol,Methanol,Methyl alcohol,1,4,1,32.04,-98,65,0.791,15.5,
1-alkanol,Ethanol,Ethyl alcohol,2,6,1,46.07,-114,78,0.789,15.5,
1-alkanol,1-Propanol,Propyl alcohol,3,8,1,60.09,-124,97,0.804,16.1,
1-alkanol,1-Butanol,Butyl alcohol,4,10,1,74.12,-89,118,0.81,16.1,
1-alkanol,1-Pentanol,Amyl alcohol,5,12,1,88.15,-78,138,0.814,,
1-alkanol,1-Hexanol,Caproyl alcohol,6,14,1,102.17,-46,157,0.814,,
1-alkanol,1-Heptanol,Heptyl alcohol,7,16,1,116.198,-33,178,0.822,,
1-alkanol,1-Octanol,Capryl alcohol,8,18,1,130.22,-15,195,0.829,,
1-alkanol,1-Nonanol,Nonyl alcohol,9,20,1,144.25,-5,214,0.828,,

# 1. Read the data into a pandas dataframe

compounds_df = pd.read_csv('data/alcohol_acid_phys_data.csv')

# 2. Display the dataframe

compounds_df

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml	pKa(1)	pKa(2)
0	1-alkanol	Methanol	Methyl alcohol	1	4	1	32.04	-98	65	0.791	15.50	NaN
1	1-alkanol	Ethanol	Ethyl alcohol	2	6	1	46.07	-114	78	0.789	15.50	NaN
2	1-alkanol	1-Propanol	Propyl alcohol	3	8	1	60.09	-124	97	0.804	16.10	NaN
3	1-alkanol	1-Butanol	Butyl alcohol	4	10	1	74.12	-89	118	0.810	16.10	NaN
4	1-alkanol	1-Pentanol	Amyl alcohol	5	12	1	88.15	-78	138	0.814	NaN	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...
120	Branched\r\ndioic acids	3-Methylpentanedioic\r\nacid	3-Methylglutaric acid	6	10	4	146.14	83	NaN	NaN	4.24	NaN
121	Aromatic\r\ndioic acids	1,2-Benzenedicarboxylic\r\nacid	o-Phthalic acid	8	6	4	166.13	d210	NaN	NaN	4.42	5.41
122	Aromatic\r\ndioic acids	2,6-\r\nNaphthalenedicarboxylic\r\nacid	NaN	12	8	4	216.18	>300	NaN	NaN	NaN	NaN
123	Aromatic\r\ndioic acids	1,4-\r\nNaphthalenedicarboxylic\r\nacid	NaN	12	8	4	216.18	>301	NaN	NaN	NaN	NaN
124	Aromatic\r\ndioic acids	Biphenyl-4,4‚-\r\ndicarboxylic acid	NaN	14	10	4	242.22	>300	NaN	NaN	NaN	NaN

125 rows × 12 columns

Cleaning the data

We need to do at least a little cleaning of the data. We can check the data for the number of rows and the data types in each column using DataFrame.info() method.

compounds_df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 125 entries, 0 to 124
Data columns (total 12 columns):
 #   Column           Non-Null Count  Dtype
---  ------           --------------  -----
 0   Class            125 non-null    object
 1   IUPAC name       125 non-null    object
 2   Common name      86 non-null     object
 3   #C               125 non-null    int64
 4   #H               125 non-null    int64
 5   #O               125 non-null    int64
 6   Molweight g/mol  123 non-null    float64
 7   mp / °C          114 non-null    object
 8   bp / °C          107 non-null    object
 9   density / g/ml   98 non-null     float64
 10  pKa(1)           72 non-null     float64
 11  pKa(2)           19 non-null     float64
dtypes: float64(4), int64(3), object(5)
memory usage: 11.8+ KB

There are lots of pKa values missing. We are not going to use the pKa values, so we can drop those columns.

Some rows are missing densities. And more importantly, some are missing melting and/or boiling points, which is the property we are interested in.

It might be possible to look these up somewhere, like the NIST Chemistry WebBook which unfortunately does seem not have a convenient API (there are unofficial ones if you search on the web). For now we can also drop these rows.

# TODO:
# 1. Drop the two pKa columns
# 2. Drop the rows with NaN values in density, melting point and boiling point columns.
# 3. Check the info again to see if the changes have been made.

# 1. Drop the two pKa columns

cdf = compounds_df.drop(columns=["pKa(1)", "pKa(2)"])

# You can check where there are still any NaN values are in the dataframe using the following command.
# It filters the df to show the rows with NaN values in any column (axis=1).
cdf[cdf.isnull().any(axis=1)]

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
12	1-alkanol	1-Tridecanol	NaN	13	28	1	200.35	31	287	0.822
14	1-alkanol	1-Pentadecanol	NaN	15	32	1	228.41	44	318	0.835
15	1-alkanol	1-Docosanol	NaN	22	46	1	326.59	71	NaN	NaN
19	2-alkanol	2-hexanol	NaN	6	14	1	102.17	-23	138	0.816
20	2-alkanol	2-heptanol	NaN	7	16	1	116.20	NaN	159	0.817
22	2-alkanol	2-Nonanol	NaN	9	20	1	144.25	-35	194	0.830
23	2-alkanol	2-Decanol	NaN	10	22	1	158.28	-5	212	0.825
24	2-alkanol	2-Dodecanol	NaN	12	26	1	186.33	19	249	0.829
26	3-alkanol	3-Hexanol	NaN	6	14	1	102.17	-57	143	0.818
28	3-alkanol	3-Octanol	NaN	8	18	1	130.22	-45	175	0.826
29	3-alkanol	3-Nonanol	NaN	9	20	1	144.25	22	193	0.825
30	3-alkanol	3-Decanol	NaN	10	22	1	158.28	-5	212	0.827
31	3-alkanol	3-Undecanol	NaN	11	24	1	172.30	NaN	230	0.088
32	3-alkanol	3-Dodecanol	NaN	12	26	1	186.33	25	246	0.829
34	4-alkanol	4-Octanol	NaN	8	18	1	130.22	-41	176	0.819
35	4-alkanol	4-Nonanol	NaN	9	20	1	144.25	-7	193	0.828
36	4-alkanol	4-Decanol	NaN	10	22	1	158.28	-11	214	0.826
37	Branched\r\nalcohol	2-Methyl-2-propanol	NaN	4	10	1	74.12	25.7	83	0.789
38	Branched\r\nalcohol	2-Methyl-1-propanol	Isobutanol, isobutyl\r\nalcohol	4	10	1	74.12	NaN	108	0.802
39	Branched\r\nalcohol	2-Methyl-2-butanol	NaN	5	12	1	88.15	-8	102	0.810
40	Branched\r\nalcohol	3-Methyl-2-butanol	NaN	5	12	1	88.15	NaN	114	0.818
41	Branched\r\nalcohol	2-Methyl-1-butanol	NaN	5	12	1	88.15	NaN	129	0.818
42	Branched\r\nalcohol	3-Methyl-1-butanol	NaN	5	12	1	88.15	-117	131	0.810
43	Cycloalcohol	Cyclohexanol	NaN	6	12	1	100.16	25	161	0.962
50	Phenols	4-Methoxyphenol	NaN	7	8	2	124.13	55	253	NaN
59	Diol	1,4-Benzenediol	Hydroquinone,,4-\r\nDihydroxybenzene	6	6	2	110.11	172	285	NaN
74	Alkanoic\r\nacid	Undecanoic acid	NaN	15	30	2	242.39	28.5	280	0.891
80	Branched\r\nalkanoic\r\nacid	2-Methylbutanoic acid	NaN	5	10	2	102.13	-80	177	0.934
83	Branched\r\nalkanoic\r\nacid	2-Methylpentanoic acid	NaN	6	12	2	116.16	NaN	195	0.923
86	Branched\r\nalkanoic\r\nacid	2-Methylhexanoic acid	NaN	7	14	2	130.18	NaN	209	0.920
87	Branched\r\nalkanoic\r\nacid	4-Methylhexanoic acid	NaN	7	14	2	130.18	NaN	110	0.921
88	Branched\r\nalkanoic\r\nacid	2-Propylpentanoic acid	Valproic acid	8	16	2	144.21	NaN	223	0.906
91	Benzoic\r\nacids	3-Methyl-benzoic acid	m-Toluic acid	8	8	2	136.14	111	NaN	1.054
92	Benzoic\r\nacids	4-Methyl-benzoic acid	p-Toluic acid	8	8	2	136.14	182	275	NaN
93	Benzoic\r\nacids	2-Phenylbenzoic acid	NaN	13	10	2	198.21	112	344	NaN
94	Benzoic\r\nacids	4-Phenylbenzoic acid	NaN	13	10	2	NaN	210	s	NaN
95	Cinnamic\r\nacid	trans-o-Methylcinnamic\r\nacid	NaN	10	10	2	162.18	175	NaN	NaN
96	Cinnamic\r\nacid	trans-p-Methylcinnamic\r\nacid	NaN	10	10	2	NaN	199	NaN	NaN
98	Phenyl-alkanoic acid	2-Phenylbutyric acid	a-Ethyl-a-toluic acid	10	12	2	47.50	NaN	NaN	NaN
99	Hydroxy\r\nacids	Hydroxyethanoic acid	Glycolic acid	2	4	3	76.05	80	d	NaN
100	Hydroxy\r\nacids	Hydroxyethanoic acid	Glycolic acid	2	4	3	76.05	80	d	NaN
101	Hydroxy\r\nacids	2-Hydroxy-benzoic acid	Salicylic acid	7	6	3	138.12	159	NaN	1.443
102	Hydroxy\r\nacids	3-Hydroxy-benzoic acid	NaN	7	6	3	138.12	202	NaN	NaN
103	Hydroxy\r\nacids	4-Hydroxy-benzoic acid	NaN	7	6	3	138.12	215	NaN	NaN
107	Alkanedioic\r\nacid	Pentanedioic acid	Glutaric acid	5	8	4	132.11	96	302	NaN
108	Alkanedioic\r\nacid	Hexanedioic acid	Adipic acid	6	10	4	146.14	153	265	NaN
109	Alkanedioic\r\nacid	Heptanedioic acid	Pimelic acid	7	12	4	160.17	104	212	NaN
110	Alkanedioic\r\nacid	Octanedioic acid	Suberic acid	8	14	4	174.19	142	230	NaN
111	Alkanedioic\r\nacid	Nonanedioic acid	Azelaic acid	9	16	4	188.29	110	286	NaN
113	Alkanedioic\r\nacid	Undecanedioic acid	1,9-\r\nNonanedicarboxylic\r\nacid	11	20	4	216.27	109	NaN	NaN
114	Alkanedioic\r\nacid	Dodecanedioic acid	Decane-1,10-\r\ndicarboxylic acid	12	22	4	230.30	128	245	NaN
115	Alkanedioic\r\nacid	Tridecanedioic acid	Brassylic acid	13	24	4	244.32	113	NaN	NaN
117	Alkenedioic\r\nacids	trans-Butenedioic acid	Fumaric	4	4	4	116.07	s300	NaN	1.635
118	Alkenedioic\r\nacids	2-Octenedioic acid	NaN	8	12	4	172.18	NaN	NaN	NaN
119	Branched\r\ndioic acids	2-Methylpropanedioic\r\nacid	Methylmalonic acid	4	6	4	118.09	129	NaN	1.455
120	Branched\r\ndioic acids	3-Methylpentanedioic\r\nacid	3-Methylglutaric acid	6	10	4	146.14	83	NaN	NaN
121	Aromatic\r\ndioic acids	1,2-Benzenedicarboxylic\r\nacid	o-Phthalic acid	8	6	4	166.13	d210	NaN	NaN
122	Aromatic\r\ndioic acids	2,6-\r\nNaphthalenedicarboxylic\r\nacid	NaN	12	8	4	216.18	>300	NaN	NaN
123	Aromatic\r\ndioic acids	1,4-\r\nNaphthalenedicarboxylic\r\nacid	NaN	12	8	4	216.18	>301	NaN	NaN
124	Aromatic\r\ndioic acids	Biphenyl-4,4‚-\r\ndicarboxylic acid	NaN	14	10	4	242.22	>300	NaN	NaN

# 2. Drop the rows with NaN values in density, melting point and boiling point columns.
# Using the subset parameter in the dropna function, you can specify the columns to
# look for NaN values.

cdf = cdf.dropna(subset=["density / g/ml", "mp / °C", "bp / °C"])

# 3. Check the info again to see if the changes have been made.

display(cdf.info())
cdf[cdf.isnull().any(axis=1)]

<class 'pandas.core.frame.DataFrame'>
Index: 85 entries, 0 to 116
Data columns (total 10 columns):
 #   Column           Non-Null Count  Dtype
---  ------           --------------  -----
 0   Class            85 non-null     object
 1   IUPAC name       85 non-null     object
 2   Common name      65 non-null     object
 3   #C               85 non-null     int64
 4   #H               85 non-null     int64
 5   #O               85 non-null     int64
 6   Molweight g/mol  85 non-null     float64
 7   mp / °C          85 non-null     object
 8   bp / °C          85 non-null     object
 9   density / g/ml   85 non-null     float64
dtypes: float64(2), int64(3), object(5)
memory usage: 7.3+ KB

None

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
12	1-alkanol	1-Tridecanol	NaN	13	28	1	200.35	31	287	0.822
14	1-alkanol	1-Pentadecanol	NaN	15	32	1	228.41	44	318	0.835
19	2-alkanol	2-hexanol	NaN	6	14	1	102.17	-23	138	0.816
22	2-alkanol	2-Nonanol	NaN	9	20	1	144.25	-35	194	0.830
23	2-alkanol	2-Decanol	NaN	10	22	1	158.28	-5	212	0.825
24	2-alkanol	2-Dodecanol	NaN	12	26	1	186.33	19	249	0.829
26	3-alkanol	3-Hexanol	NaN	6	14	1	102.17	-57	143	0.818
28	3-alkanol	3-Octanol	NaN	8	18	1	130.22	-45	175	0.826
29	3-alkanol	3-Nonanol	NaN	9	20	1	144.25	22	193	0.825
30	3-alkanol	3-Decanol	NaN	10	22	1	158.28	-5	212	0.827
32	3-alkanol	3-Dodecanol	NaN	12	26	1	186.33	25	246	0.829
34	4-alkanol	4-Octanol	NaN	8	18	1	130.22	-41	176	0.819
35	4-alkanol	4-Nonanol	NaN	9	20	1	144.25	-7	193	0.828
36	4-alkanol	4-Decanol	NaN	10	22	1	158.28	-11	214	0.826
37	Branched\r\nalcohol	2-Methyl-2-propanol	NaN	4	10	1	74.12	25.7	83	0.789
39	Branched\r\nalcohol	2-Methyl-2-butanol	NaN	5	12	1	88.15	-8	102	0.810
42	Branched\r\nalcohol	3-Methyl-1-butanol	NaN	5	12	1	88.15	-117	131	0.810
43	Cycloalcohol	Cyclohexanol	NaN	6	12	1	100.16	25	161	0.962
74	Alkanoic\r\nacid	Undecanoic acid	NaN	15	30	2	242.39	28.5	280	0.891
80	Branched\r\nalkanoic\r\nacid	2-Methylbutanoic acid	NaN	5	10	2	102.13	-80	177	0.934

Still a few issues (from looking at the dataframe and its info):

• The Class and IUPAC name columns have some odd characters which appear to encode whitespace, e.g. “Alkanedioic\r\nacid” contains “\r\n” characters.

• The DataFrame.info() shows that the melting and boiling points have object, i.e. string data, types, which suggests there are non-numerical values. If you look at the columns, some rows have “d” or “s” sometimes with a number (e.g. trans-Butenedioic acid), probably to denote “decomposed” or “sublimed” maybe.

Pandas has str.contains and str.replace methods for its Series structure. Try using these to check and remove the encoded characters in the columns.

Can you think of a way to deal with the non- or partly numeric phase change values?

Hint

Could this help?

# TODO:

# 1. Ensure only numeric values are present in the melting point, boiling point columns
# 2. Remove the encoded whitespace characters from the 'Class' and 'IUPAC name' columns
# 3. Convert the melting point, boiling point columns to numeric values.

# 1. Ensure only numeric values are present in the melting point, boiling point columns

# pd.to_numeric with errors='coerce' will convert non-numeric values to NaN - makes it straightforward
# to be dropped later

cdf["mp / °C"] = pd.to_numeric(cdf["mp / °C"], errors="coerce")
cdf["bp / °C"] = pd.to_numeric(cdf["bp / °C"], errors="coerce")

# This filters the df to show the rows with "\r" in the "Class" column.

display(cdf[cdf["Class"].str.contains("\r")])

# Check rows with "\r" in the "IUPAC name" column.

cdf[cdf["IUPAC name"].str.contains("\r")]

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
37	Branched\r\nalcohol	2-Methyl-2-propanol	NaN	4	10	1	74.120	25.7	83.0	0.7890
39	Branched\r\nalcohol	2-Methyl-2-butanol	NaN	5	12	1	88.150	-8.0	102.0	0.8100
42	Branched\r\nalcohol	3-Methyl-1-butanol	NaN	5	12	1	88.150	-117.0	131.0	0.8100
62	Alkanoic\r\nacid	Formic acid	Methanoic acid	1	2	2	46.030	8.0	101.0	1.2200
63	Alkanoic\r\nacid	Acetic acid	Ethanoic acid	2	4	2	60.050	17.0	118.0	1.0480
64	Alkanoic\r\nacid	Propanoic acid	Propionic acid	3	6	2	74.080	-21.0	142.0	0.9910
65	Alkanoic\r\nacid	Butanoic acid	Butyric acid	4	8	2	88.100	-5.0	164.0	0.9560
66	Alkanoic\r\nacid	Pentanoic acid	Valeric acid	5	10	2	102.130	-34.0	186.0	0.9370
67	Alkanoic\r\nacid	Hexanoic acid	Caproic acid	6	12	2	116.160	-4.0	202.0	0.9240
68	Alkanoic\r\nacid	Heptanoic acid	Enanthic acid	7	14	2	130.180	-7.0	222.0	0.9160
69	Alkanoic\r\nacid	Octanoic acid	Caprylic acid	8	16	2	144.210	17.0	240.0	0.9110
70	Alkanoic\r\nacid	Nonanoic acid	Pelargonic acid	9	18	2	158.230	12.0	256.0	0.9050
71	Alkanoic\r\nacid	Dodecanoic acid	Lauric acid	12	24	2	200.310	44.0	296.0	0.8680
72	Alkanoic\r\nacid	Decanoic acid	Capric acid	13	26	2	214.340	31.0	270.0	0.8860
73	Alkanoic\r\nacid	Tridecanoic acid	Tridecylic acid	14	28	2	228.360	42.0	308.0	0.8460
74	Alkanoic\r\nacid	Undecanoic acid	NaN	15	30	2	242.390	28.5	280.0	0.8910
75	Alkanoic\r\nacid	Pentacanoic acid	Pentadecylic acid	17	34	2	270.440	52.0	360.0	0.8420
76	Alkanoic\r\nacid	Hexadecanoic acid	Palmitic acid	16	32	2	256.420	63.0	351.0	0.8530
77	Alkanoic\r\nacid	Octadecanoic acid	Stearic acid	18	36	2	284.480	69.0	NaN	0.9410
78	Alkanoic\r\nacid	Docosanoic acid	Behenic acid	22	44	2	340.570	81.0	NaN	0.8220
79	Branched\r\nalkanoic\r\nacid	2-Methylpropanoic acid	Isobutyric acid	4	8	2	88.104	-46.0	155.0	0.9450
80	Branched\r\nalkanoic\r\nacid	2-Methylbutanoic acid	NaN	5	10	2	102.130	-80.0	177.0	0.9340
81	Branched\r\nalkanoic\r\nacid	3-Methylbutanoic acid	Isovaleric acid	5	10	2	102.130	-30.0	176.0	0.9250
82	Branched\r\nalkanoic\r\nacid	2,2-Dimethylpropanoic\r\nacid	Trimethylacetic acid	5	10	2	102.130	35.0	164.0	0.9050
84	Branched\r\nalkanoic\r\nacid	3-Methylpentanoic acid	3-Methylvaleric acid	6	12	2	116.160	-42.0	197.0	0.9260
85	Branched\r\nalkanoic\r\nacid	4-Methylpentanoic acid	4-Methylvaleric acid,\r\nIsocaproic acid	6	12	2	116.160	-33.0	200.0	0.9230
89	Benzoic\r\nacids	Benzoic acid	Benzenecarboxylic\r\nacid	7	6	2	122.120	122.0	249.0	1.2660
90	Benzoic\r\nacids	2-Methyl-benzoic acid	o-Toluic acid	8	8	2	136.140	107.0	258.0	1.0620
97	Phenyl-\r\nalkanoic\r\nacid	Phenylethanoic acid	α-Tolylic acid,\r\nBenzeneacetic	8	8	2	136.140	77.0	266.0	1.2286
104	Alkanedioic\r\nacid	Ethanedioic acid	Oxalic acid	2	2	4	90.040	NaN	NaN	1.9000
105	Alkanedioic\r\nacid	Propanedioic acid	Malonic acid	3	4	4	104.060	136.0	NaN	1.6190
106	Alkanedioic\r\nacid	Butanedioic acid	Succinic acid	4	6	4	118.090	185.0	NaN	1.5720
112	Alkanedioic\r\nacid	Decanedioic acid	Sebacic acid	10	18	4	202.240	131.0	374.0	1.2710
116	Alkenedioic\r\nacids	cis-Butenedioic acid	Maleic	4	4	4	116.070	139.0	NaN	1.5900

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
60	Diol	4-Methyl-1,2-\r\nbenzenediol	4-Methylcatechol	7	8	2	124.13	68.0	251.0	1.129
82	Branched\r\nalkanoic\r\nacid	2,2-Dimethylpropanoic\r\nacid	Trimethylacetic acid	5	10	2	102.13	35.0	164.0	0.905

A note about the whitespace characters

Looking at the values that have this issue, the common substring causing the problem appears to be “\r\n”.

This set of characters relates to how a line ending or newline character is represented and working out what to do with them is a common issue when you work with data especially from a flat file format like csv.

# 2. Remove the encoded whitespace characters (these are actually encoded line breaks) from the
# "Class" and "IUPAC name" columns. It's also a good idea to remove leading and trailing whitespaces.

cols = ["Class", "IUPAC name"]

for col in cols:
    cdf.loc[:,col] = cdf[col].str.strip()

    cdf.loc[:,col] = cdf[col].str.replace("\r\n", " ")

# check if the changes have been made

display(cdf[cdf["Class"].str.contains("\r")])
cdf[cdf["IUPAC name"].str.contains("\r")]

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml

Some of the compounds do not have common names. We could either drop the column or fill the missing values with something like “unknown” or “none”.

# TODO:

# Clean column with missing compounds' common names

# check rows with mising values in the "Common name" column

cdf[cdf["Common name"].isnull()]

	Class	IUPAC name	Common name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
12	1-alkanol	1-Tridecanol	NaN	13	28	1	200.35	31.0	287.0	0.822
14	1-alkanol	1-Pentadecanol	NaN	15	32	1	228.41	44.0	318.0	0.835
19	2-alkanol	2-hexanol	NaN	6	14	1	102.17	-23.0	138.0	0.816
22	2-alkanol	2-Nonanol	NaN	9	20	1	144.25	-35.0	194.0	0.830
23	2-alkanol	2-Decanol	NaN	10	22	1	158.28	-5.0	212.0	0.825
24	2-alkanol	2-Dodecanol	NaN	12	26	1	186.33	19.0	249.0	0.829
26	3-alkanol	3-Hexanol	NaN	6	14	1	102.17	-57.0	143.0	0.818
28	3-alkanol	3-Octanol	NaN	8	18	1	130.22	-45.0	175.0	0.826
29	3-alkanol	3-Nonanol	NaN	9	20	1	144.25	22.0	193.0	0.825
30	3-alkanol	3-Decanol	NaN	10	22	1	158.28	-5.0	212.0	0.827
32	3-alkanol	3-Dodecanol	NaN	12	26	1	186.33	25.0	246.0	0.829
34	4-alkanol	4-Octanol	NaN	8	18	1	130.22	-41.0	176.0	0.819
35	4-alkanol	4-Nonanol	NaN	9	20	1	144.25	-7.0	193.0	0.828
36	4-alkanol	4-Decanol	NaN	10	22	1	158.28	-11.0	214.0	0.826
37	Branched alcohol	2-Methyl-2-propanol	NaN	4	10	1	74.12	25.7	83.0	0.789
39	Branched alcohol	2-Methyl-2-butanol	NaN	5	12	1	88.15	-8.0	102.0	0.810
42	Branched alcohol	3-Methyl-1-butanol	NaN	5	12	1	88.15	-117.0	131.0	0.810
43	Cycloalcohol	Cyclohexanol	NaN	6	12	1	100.16	25.0	161.0	0.962
74	Alkanoic acid	Undecanoic acid	NaN	15	30	2	242.39	28.5	280.0	0.891
80	Branched alkanoic acid	2-Methylbutanoic acid	NaN	5	10	2	102.13	-80.0	177.0	0.934

# The "Common name" is not present for all compounds and is unlikely to be helpful a unique
# identifier. We also have a (hopefully) standardised IUPAC name for each compound, so we can
# drop this column. Alternatively, you could use cdf["Common name"].fillna() to replace NaN
# values with a placeholder like "Unknown".

cdf = cdf.drop(columns=["Common name"])
cdf

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
0	1-alkanol	Methanol	1	4	1	32.04	-98.0	65.0	0.791
1	1-alkanol	Ethanol	2	6	1	46.07	-114.0	78.0	0.789
2	1-alkanol	1-Propanol	3	8	1	60.09	-124.0	97.0	0.804
3	1-alkanol	1-Butanol	4	10	1	74.12	-89.0	118.0	0.810
4	1-alkanol	1-Pentanol	5	12	1	88.15	-78.0	138.0	0.814
...	...	...	...	...	...	...	...	...	...
104	Alkanedioic acid	Ethanedioic acid	2	2	4	90.04	NaN	NaN	1.900
105	Alkanedioic acid	Propanedioic acid	3	4	4	104.06	136.0	NaN	1.619
106	Alkanedioic acid	Butanedioic acid	4	6	4	118.09	185.0	NaN	1.572
112	Alkanedioic acid	Decanedioic acid	10	18	4	202.24	131.0	374.0	1.271
116	Alkenedioic acids	cis-Butenedioic acid	4	4	4	116.07	139.0	NaN	1.590

85 rows × 9 columns

# info shows there are some missing values for mp and bp

cdf.info()

<class 'pandas.core.frame.DataFrame'>
Index: 85 entries, 0 to 116
Data columns (total 9 columns):
 #   Column           Non-Null Count  Dtype
---  ------           --------------  -----
 0   Class            85 non-null     object
 1   IUPAC name       85 non-null     object
 2   #C               85 non-null     int64
 3   #H               85 non-null     int64
 4   #O               85 non-null     int64
 5   Molweight g/mol  85 non-null     float64
 6   mp / °C          84 non-null     float64
 7   bp / °C          78 non-null     float64
 8   density / g/ml   85 non-null     float64
dtypes: float64(4), int64(3), object(2)
memory usage: 6.6+ KB

If you converted the mp and bp columns to numeric types using pd.to_numeric with errors="coerce" then you will probably now have some additional null values in those columns, so those rows can be dropped.

# TODO: Drop any remaining rows with NaN values in mp/bp columns

cdf = cdf.dropna(subset=["mp / °C", "bp / °C"])

display(cdf)
cdf.info()

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
0	1-alkanol	Methanol	1	4	1	32.04	-98.0	65.0	0.7910
1	1-alkanol	Ethanol	2	6	1	46.07	-114.0	78.0	0.7890
2	1-alkanol	1-Propanol	3	8	1	60.09	-124.0	97.0	0.8040
3	1-alkanol	1-Butanol	4	10	1	74.12	-89.0	118.0	0.8100
4	1-alkanol	1-Pentanol	5	12	1	88.15	-78.0	138.0	0.8140
...	...	...	...	...	...	...	...	...	...
85	Branched alkanoic acid	4-Methylpentanoic acid	6	12	2	116.16	-33.0	200.0	0.9230
89	Benzoic acids	Benzoic acid	7	6	2	122.12	122.0	249.0	1.2660
90	Benzoic acids	2-Methyl-benzoic acid	8	8	2	136.14	107.0	258.0	1.0620
97	Phenyl- alkanoic acid	Phenylethanoic acid	8	8	2	136.14	77.0	266.0	1.2286
112	Alkanedioic acid	Decanedioic acid	10	18	4	202.24	131.0	374.0	1.2710

78 rows × 9 columns

<class 'pandas.core.frame.DataFrame'>
Index: 78 entries, 0 to 112
Data columns (total 9 columns):
 #   Column           Non-Null Count  Dtype
---  ------           --------------  -----
 0   Class            78 non-null     object
 1   IUPAC name       78 non-null     object
 2   #C               78 non-null     int64
 3   #H               78 non-null     int64
 4   #O               78 non-null     int64
 5   Molweight g/mol  78 non-null     float64
 6   mp / °C          78 non-null     float64
 7   bp / °C          78 non-null     float64
 8   density / g/ml   78 non-null     float64
dtypes: float64(4), int64(3), object(2)
memory usage: 6.1+ KB

Finally, we have a clean dataset with no missing values and the correct dtypes.

We can look at the summary statistics for the numerical columns we currently have, but there’s not much there yet.

cdf.describe()

	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
count	78.000000	78.000000	78.000000	78.000000	78.000000	78.000000	78.000000
mean	7.538462	14.641026	1.423077	128.063308	-2.723077	200.294872	0.922931
std	3.496537	7.759325	0.570241	49.972504	54.837412	67.038099	0.138293
min	1.000000	2.000000	1.000000	32.040000	-124.000000	65.000000	0.785000
25%	5.000000	8.000000	1.000000	100.652500	-34.750000	161.000000	0.822250
50%	7.000000	12.000000	1.000000	122.140000	-4.000000	199.000000	0.849500
75%	9.000000	20.000000	2.000000	144.250000	30.375000	245.750000	1.013500
max	17.000000	34.000000	4.000000	270.440000	131.000000	374.000000	1.344000

There is one more thing we can do to tidy this data.

You may not be so familiar with the pandas category dtype. It is used when a variable takes a limited number of values and has some advantages in terms of how pandas deals with the data, particularly performance-wise.

Check the number of unique values for the columns. Which one could be treated as categorical data?

# TODO: Check for categorical columns and change the data type to 'category' if necessary

# Running describe with include="all" will show information about all columns, including
# ones with non-numeric dtypes. This includes the number of unique values in each
# non-numeric column.

display(cdf.describe(include="all"))

# Alternatively:

# Shows the number of unique values in the "Class" column
display(cdf["Class"].nunique())


# Shows the unique values in the "Class" column
display(cdf["Class"].unique())

# Shows the values in the "Class" column and their frequency
display(cdf["Class"].value_counts())

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
count	78	78	78.000000	78.000000	78.000000	78.000000	78.000000	78.000000	78.000000
unique	13	78	NaN	NaN	NaN	NaN	NaN	NaN	NaN
top	1-alkanol	Methanol	NaN	NaN	NaN	NaN	NaN	NaN	NaN
freq	15	1	NaN	NaN	NaN	NaN	NaN	NaN	NaN
mean	NaN	NaN	7.538462	14.641026	1.423077	128.063308	-2.723077	200.294872	0.922931
std	NaN	NaN	3.496537	7.759325	0.570241	49.972504	54.837412	67.038099	0.138293
min	NaN	NaN	1.000000	2.000000	1.000000	32.040000	-124.000000	65.000000	0.785000
25%	NaN	NaN	5.000000	8.000000	1.000000	100.652500	-34.750000	161.000000	0.822250
50%	NaN	NaN	7.000000	12.000000	1.000000	122.140000	-4.000000	199.000000	0.849500
75%	NaN	NaN	9.000000	20.000000	2.000000	144.250000	30.375000	245.750000	1.013500
max	NaN	NaN	17.000000	34.000000	4.000000	270.440000	131.000000	374.000000	1.344000

13

array(['1-alkanol', '2-alkanol', '3-alkanol', '4-alkanol',
       'Branched alcohol', 'Cycloalcohol', 'Phenols', 'Diol',
       'Alkanoic acid', 'Branched alkanoic acid', 'Benzoic acids',
       'Phenyl- alkanoic acid', 'Alkanedioic acid'], dtype=object)

Class
1-alkanol                 15
Alkanoic acid             15
Phenols                   11
2-alkanol                  8
3-alkanol                  7
Branched alkanoic acid     6
4-alkanol                  4
Diol                       4
Branched alcohol           3
Benzoic acids              2
Cycloalcohol               1
Phenyl- alkanoic acid      1
Alkanedioic acid           1
Name: count, dtype: int64

There is a unique IUPAC name for each row, but a set of 13 classes for the 78 compounds.

It makes sense to use the classes as a category; after all, that is what they are - the classes categorise the compounds in to similar types like acids, alcohols, etc.

The number of carbon, hydrogen and oxygen atoms also take limited sets of values. These could be taken as categorical, but it is a less clear choice. If you were thinking about this independently of preparing this data, would you categorise a set of compounds based on just the number of carbons they have, especially if they also might have different oxygen counts, for example? There might also be some advantages of being able to work with the numbers as numerical data.

For the moment, we can convert just the Class column to a category dtype.

cdf.loc[:,"Class"] = cdf["Class"].astype("category")

cdf.info()

<class 'pandas.core.frame.DataFrame'>
Index: 78 entries, 0 to 112
Data columns (total 9 columns):
 #   Column           Non-Null Count  Dtype
---  ------           --------------  -----
 0   Class            78 non-null     object
 1   IUPAC name       78 non-null     object
 2   #C               78 non-null     int64
 3   #H               78 non-null     int64
 4   #O               78 non-null     int64
 5   Molweight g/mol  78 non-null     float64
 6   mp / °C          78 non-null     float64
 7   bp / °C          78 non-null     float64
 8   density / g/ml   78 non-null     float64
dtypes: float64(4), int64(3), object(2)
memory usage: 6.1+ KB

Visualising the data

Have a look at this brilliant seaborn tutorial developed as by Charles J. Weiss at Augustana University in South Dakota.

Some of the data used has a similar structure to this dataset.

There are no hard and fast rules about which types of plots to use to visualise your data, but the data types of the columns will mean some are more suitable to look at the data and relationships for certain variables.

Try plotting the data to visualise some of the following:

• The distribution of different classes of compound in the data set

• Identify if there are any outliers for the thermochemical data or density

• The distribution of boiling points, melting point and/or density with the class of the compound

• Identify any correlations between the numerical features and the melting and/or boiling point.

  • Is there any difference for different classes of compound?

Are there any other interesting patterns or trends in the data that you have observed?

# A countplot (bar chart) can be used to visualise the frequency of compounds in each class.

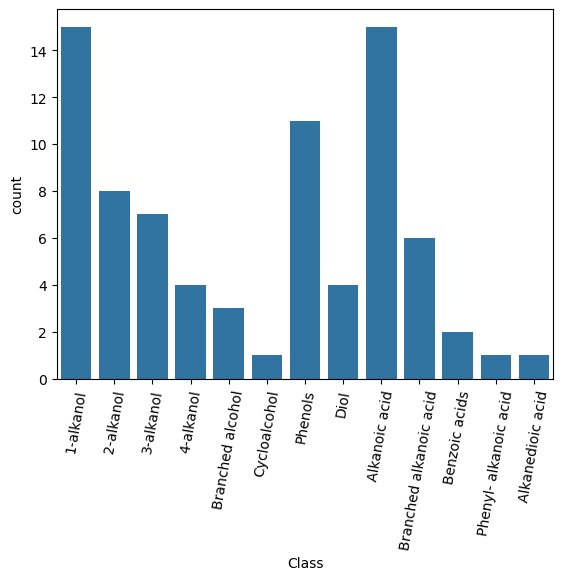

sns.countplot(data=cdf, x="Class")
plt.xticks(rotation=80)

plt.show()

Alcohols comprise the majority of the dataset, with 1-alkanols (primary alkane diols) being the major class. Of the acids, alkane-derived carboxylic acids are the main group. There are three classes containing only a single compound - cyclic alcohols, phenyl-alkanoic acid and alkanedioic (i.e. alkane dicarboxylic) acids. It is important to bear in mind that some classes are poorly represented and which classes will strong influence due to the frequency they occur in the dataset.

fig, axs = plt.subplots(3, 1, figsize=(6, 18), sharex=False)

y_cols = ["mp / °C", "bp / °C", "density / g/ml"]
colours = ["orchid", "seagreen", "blue"]


for i, col in enumerate(y_cols):
#    sns.histplot(data=cdf, x=col, ax=axs[i], color=colours[i])

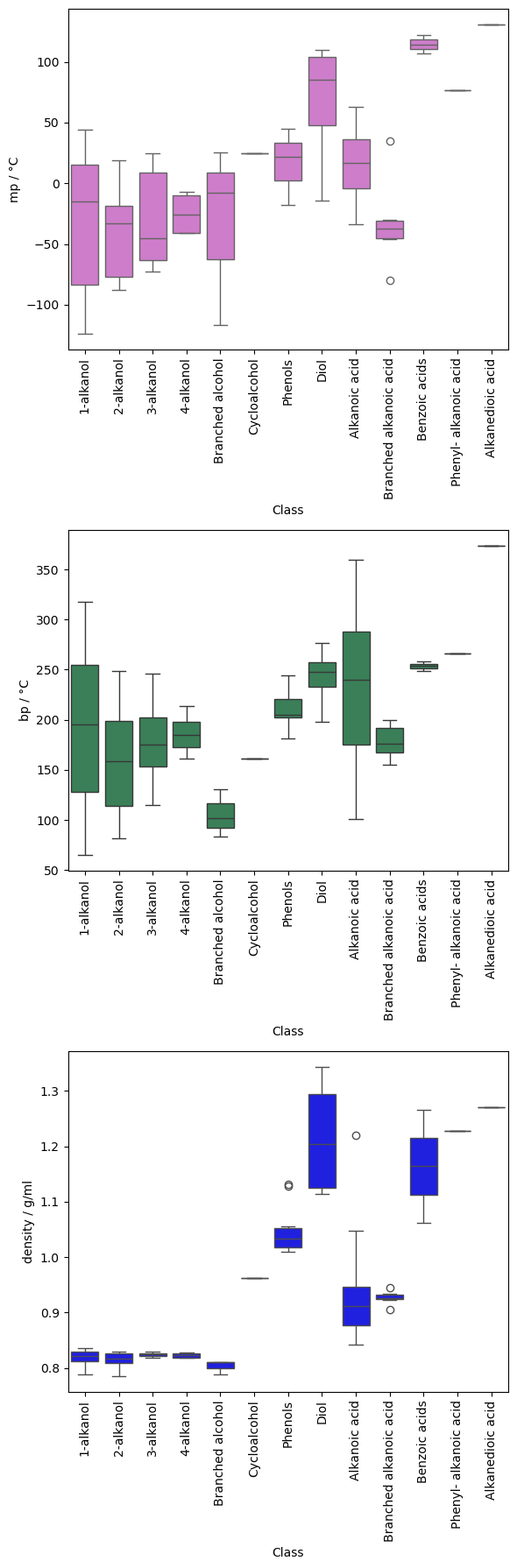

   g = sns.boxplot(data=cdf, x="Class", y=col, ax=axs[i], color=colours[i])
   labels = g.get_xticklabels()
   g.set_xticks(range(0, len(labels)))
   g.set_xticklabels(g.get_xticklabels(), rotation=90)


plt.tight_layout()
plt.show()

The boxplots suggest that there may be some values that further warrant investigation to check their validity. However, many of the classes contain relatively few samples, so analysis of the distribution based on the standard deviation is unlikely to be very reliable.

The largest classes show quite wide variation in their phase change temperatures, with no values appearing to be statistically unusual. Looking at the compounds, the range of melting and boiling points seems fairly reasonable given the compositional range.

Can you think of a way to visualise the variation in mp and/or boiling point within these classes as a function of composition?

major_classes = cdf[cdf["Class"].isin(["1-alkanol", "Alkanoic acid"])]

value_vars=["mp / °C", "bp / °C", "#C"]
data=major_classes.melt(value_vars=value_vars, id_vars=["Class", "#C"])
data

	Class	#C	variable	value
0	1-alkanol	1	mp / °C	-98.0
1	1-alkanol	2	mp / °C	-114.0
2	1-alkanol	3	mp / °C	-124.0
3	1-alkanol	4	mp / °C	-89.0
4	1-alkanol	5	mp / °C	-78.0
5	1-alkanol	6	mp / °C	-46.0
6	1-alkanol	7	mp / °C	-33.0
7	1-alkanol	8	mp / °C	-15.0
8	1-alkanol	9	mp / °C	-5.0
9	1-alkanol	10	mp / °C	7.0
10	1-alkanol	11	mp / °C	1.0
11	1-alkanol	12	mp / °C	24.0
12	1-alkanol	13	mp / °C	31.0
13	1-alkanol	14	mp / °C	38.0
14	1-alkanol	15	mp / °C	44.0
15	Alkanoic acid	1	mp / °C	8.0
16	Alkanoic acid	2	mp / °C	17.0
17	Alkanoic acid	3	mp / °C	-21.0
18	Alkanoic acid	4	mp / °C	-5.0
19	Alkanoic acid	5	mp / °C	-34.0
20	Alkanoic acid	6	mp / °C	-4.0
21	Alkanoic acid	7	mp / °C	-7.0
22	Alkanoic acid	8	mp / °C	17.0
23	Alkanoic acid	9	mp / °C	12.0
24	Alkanoic acid	12	mp / °C	44.0
25	Alkanoic acid	13	mp / °C	31.0
26	Alkanoic acid	14	mp / °C	42.0
27	Alkanoic acid	15	mp / °C	28.5
28	Alkanoic acid	17	mp / °C	52.0
29	Alkanoic acid	16	mp / °C	63.0
30	1-alkanol	1	bp / °C	65.0
31	1-alkanol	2	bp / °C	78.0
32	1-alkanol	3	bp / °C	97.0
33	1-alkanol	4	bp / °C	118.0
34	1-alkanol	5	bp / °C	138.0
35	1-alkanol	6	bp / °C	157.0
36	1-alkanol	7	bp / °C	178.0
37	1-alkanol	8	bp / °C	195.0
38	1-alkanol	9	bp / °C	214.0
39	1-alkanol	10	bp / °C	229.0
40	1-alkanol	11	bp / °C	246.0
41	1-alkanol	12	bp / °C	264.0
42	1-alkanol	13	bp / °C	287.0
43	1-alkanol	14	bp / °C	296.0
44	1-alkanol	15	bp / °C	318.0
45	Alkanoic acid	1	bp / °C	101.0
46	Alkanoic acid	2	bp / °C	118.0
47	Alkanoic acid	3	bp / °C	142.0
48	Alkanoic acid	4	bp / °C	164.0
49	Alkanoic acid	5	bp / °C	186.0
50	Alkanoic acid	6	bp / °C	202.0
51	Alkanoic acid	7	bp / °C	222.0
52	Alkanoic acid	8	bp / °C	240.0
53	Alkanoic acid	9	bp / °C	256.0
54	Alkanoic acid	12	bp / °C	296.0
55	Alkanoic acid	13	bp / °C	270.0
56	Alkanoic acid	14	bp / °C	308.0
57	Alkanoic acid	15	bp / °C	280.0
58	Alkanoic acid	17	bp / °C	360.0
59	Alkanoic acid	16	bp / °C	351.0

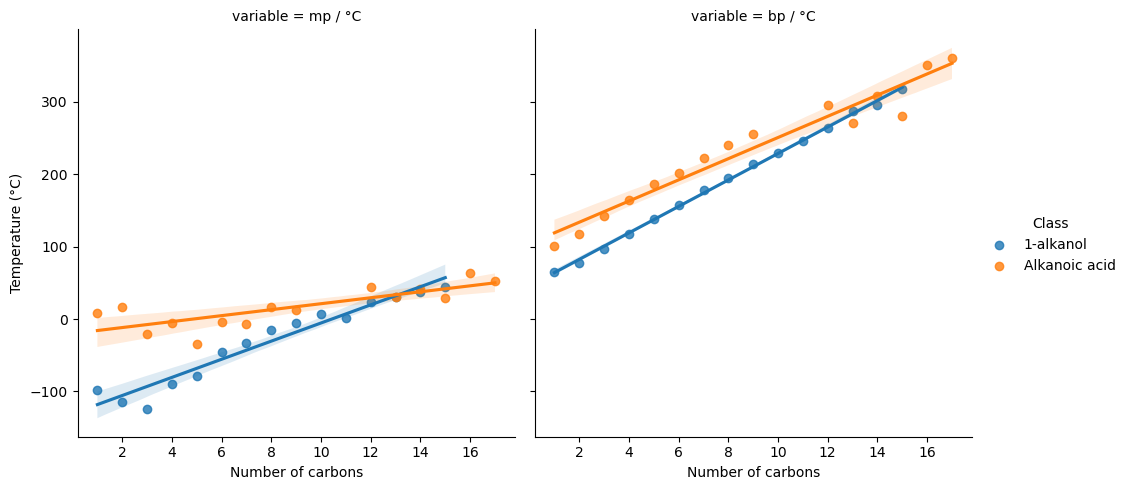

g = sns.lmplot(data=data, x="#C", y="value", hue="Class", col="variable", fit_reg=True)

g.set_axis_labels("Number of carbons", "Temperature (°C)")

plt.show()

cdf.drop(columns=["Class", "IUPAC name"]).corr()

	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml
#C	1.000000	0.905225	0.014530	0.984666	0.490628	0.842080	-0.173112
#H	0.905225	1.000000	-0.114922	0.896220	0.196345	0.624951	-0.500815
#O	0.014530	-0.114922	1.000000	0.176808	0.461976	0.431204	0.591196
Molweight g/mol	0.984666	0.896220	0.176808	1.000000	0.527376	0.884174	-0.115906
mp / °C	0.490628	0.196345	0.461976	0.527376	1.000000	0.741620	0.624396
bp / °C	0.842080	0.624951	0.431204	0.884174	0.741620	1.000000	0.296797
density / g/ml	-0.173112	-0.500815	0.591196	-0.115906	0.624396	0.296797	1.000000

Seaborn’s pairplot function can be used to visualise the relationships between the numerical columns in a dataframe. The hue parameter can be used to colour the points by a categorical column.

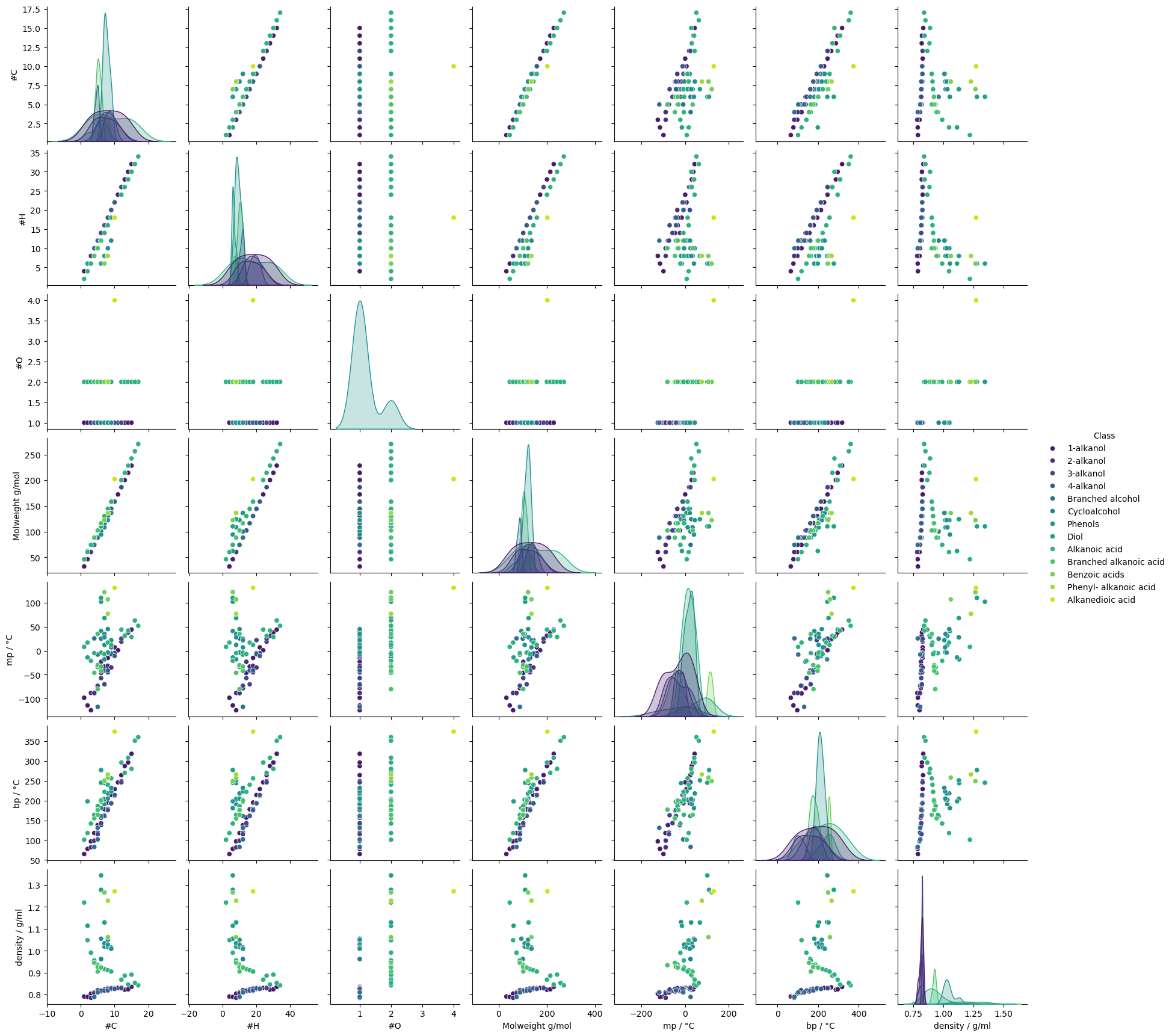

sns.pairplot(cdf, hue="Class", diag_kind="kde",  palette="viridis")
plt.show()

# The plot is quite crowded. Redraw the pair plot with a smaller subset of the data. Dropping #O
# (only two unique values, no relation to others) and #H atoms (strongly correlated with #C) will
# reduce the number of dimensions.

drop_cols = ["#O", "#H"]

df = cdf.drop(columns=drop_cols)

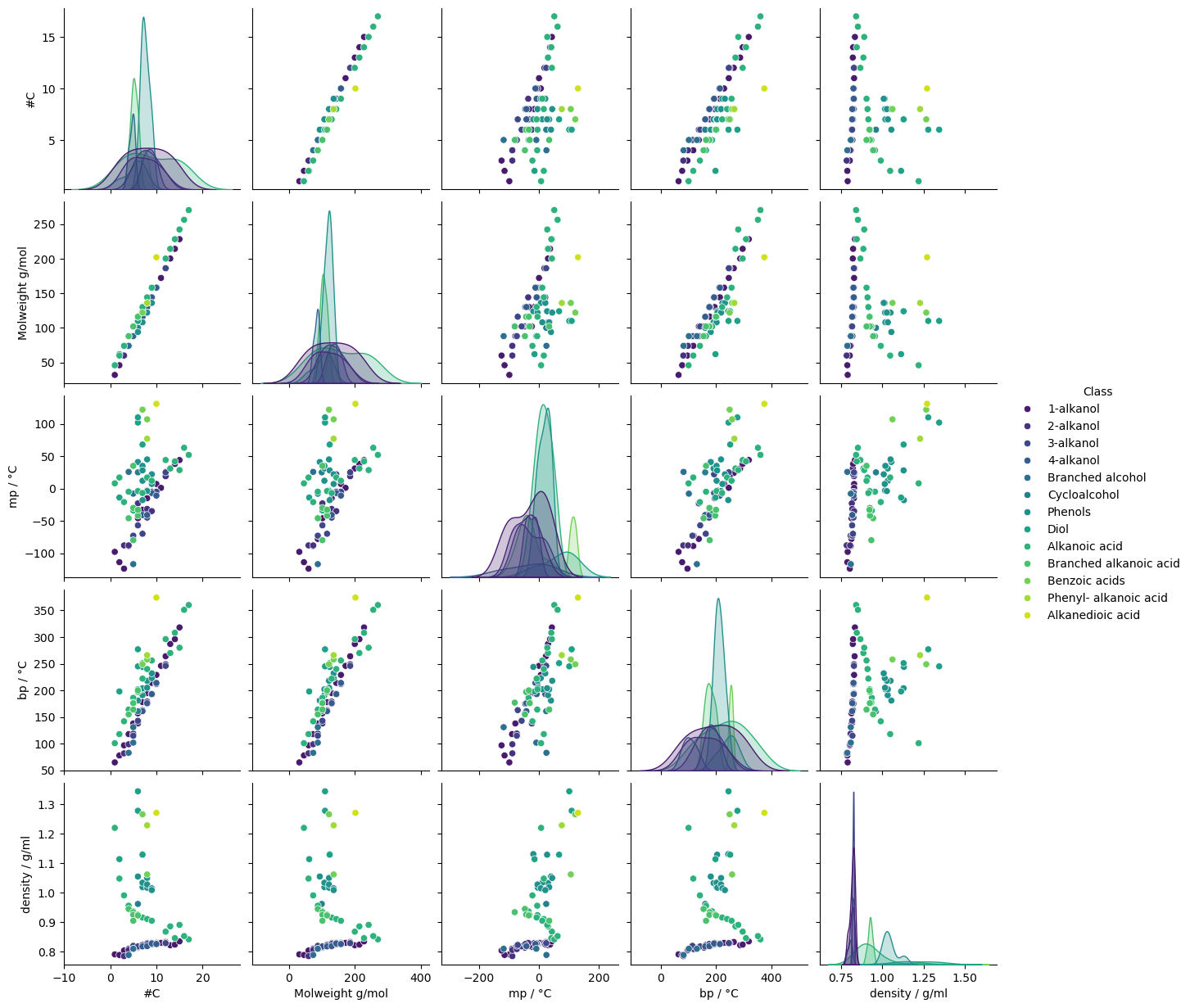

sns.pairplot(df, hue="Class", diag_kind="kde",  palette="viridis")
plt.show()

An alternative way to look for correlations between numerical variables is using a heatmap. These can be annotated with a correlation coefficient.

# The correlation matrix can be visualised using a heatmap. The annot parameter adds the
# correlation values to the plot. By default, these are the Pearson correlation coefficient.

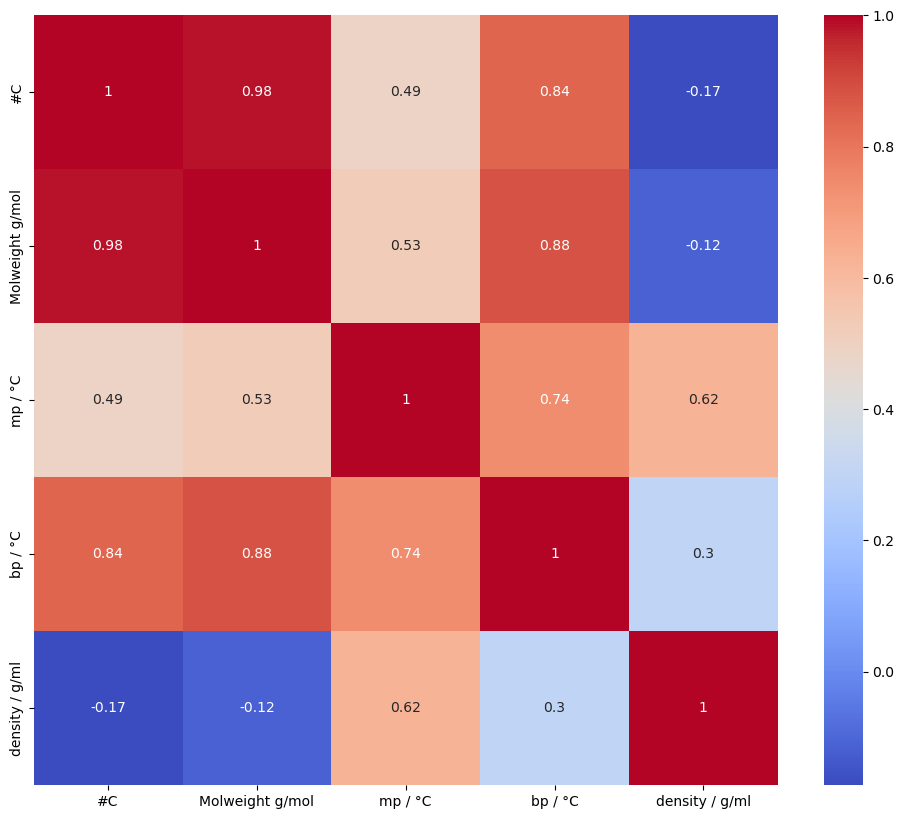

sns.heatmap(df.drop(columns=["Class", "IUPAC name"]).corr(), annot=True, cmap="coolwarm")
plt.show()

As we would expect, there is clearly a strong relationship between molecular weight and boiling point; and a weaker positive correlation with melting point.

Molecular weight and the number of carbons are also strongly correlated - again, this is intuitive. The correlation is so strong that one is essentially redundant. [If the data was going to be used to fit a model, it would be advisable to remove one of these features to reduce model complexity and avoid possible issues with colinear features.]

The combination of scatterplots and heatmap shows some interesting class-related effects. The relationship between density and other variables, for example, is quite different depending on the compound’s class. Over the whole dataset, the correlation coefficient between density and boiling point is 0.3, indicating only a weak positive correlation, but the pairplot suggests stronger, but distinct correlations within some classes.

# To see the relationship between density and boiling point more clearly, we can plot a
# scatterplot restricted to the 5 largest classes (>= 7 or more samples).

top_classes = cdf["Class"].value_counts()[:5].index.to_list()

df = cdf[cdf["Class"].isin(top_classes)]

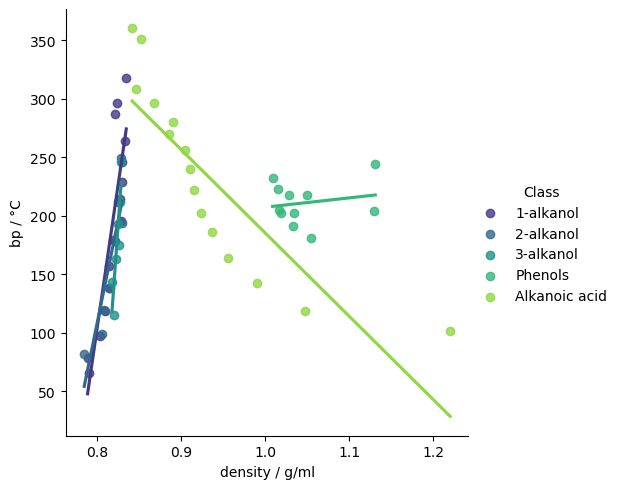

sns.lmplot(df, x="density / g/ml", y="bp / °C", hue="Class", fit_reg=True,  ci=None, palette="viridis")
plt.show()

Adding some descriptors

We have a list of compounds and a small number of observed values and descriptors. We can add a few more by calculating them using RDKit, but we only have IUPAC names, so we need to obtain a more rigorous representation to use with RDKit.

Get some SMILES strings

The Chemical Identifier Resolver (CIR) service is run by the CADD Group at the NCI/NIH as part of their Cactus server. It is used in the Molecular fingerprints notebook.

# Here is a function so the process of getting the SMILES can be repeated for multiple compounds.
# It includes a sleep time (`time.sleep`) to avoid overloading the server.

def get_smiles_from_name(name):
    """Gets SMILES string from the Cactus API given a chemical name."""

    ROOT_URL = "https://cactus.nci.nih.gov/chemical/structure/"
    identifier = name
    representation = "smiles"

    query_url = f"{ROOT_URL}{identifier}/{representation}"

    response = requests.get(query_url)
    time.sleep(0.05)
    if response:
        return response.text
    else:
        print(f"Failed to get SMILES for {name}")
        return "not found"
        # raise Exception(f"Cactus request failed for {name}: {response.status_code}")

# TODO: Get a list of SMILES strings for the compounds in the dataframe and add this to the
# dataframe as a new column.

compounds = cdf["IUPAC name"]

smiles = [get_smiles_from_name(compound) for compound in compounds]
# This can take > 1 minute to run
smiles

Failed to get SMILES for Pentacanoic acid

['CO',
 'CCO',
 'CCCO',
 'CCCCO',
 'CCCCCO',
 'CCCCCCO',
 'CCCCCCCO',
 'CCCCCCCCO',
 'CCCCCCCCCO',
 'CCCCCCCCCCO',
 'CCCCCCCCCCCO',
 'CCCCCCCCCCCCO',
 'CCCCCCCCCCCCCO',
 'CCCCCCCCCCCCCCO',
 'CCCCCCCCCCCCCCCO',
 'CC(C)O',
 'CCC(C)O',
 'CCCC(C)O',
 'CCCCC(C)O',
 'CCCCCCC(C)O',
 'CCCCCCCC(C)O',
 'CCCCCCCCC(C)O',
 'CCCCCCCCCCC(C)O',
 'CCC(O)CC',
 'CCCC(O)CC',
 'CCCCC(O)CC',
 'CCCCCC(O)CC',
 'CCCCCCC(O)CC',
 'CCCCCCCC(O)CC',
 'CCCCCCCCCC(O)CC',
 'CCCC(O)CCC',
 'CCCCC(O)CCC',
 'CCCCCC(O)CCC',
 'CCCCCCC(O)CCC',
 'CC(C)(C)O',
 'CCC(C)(C)O',
 'CC(C)CCO',
 'OC1CCCCC1',
 'Oc1ccccc1',
 'Cc1ccccc1O',
 'Cc1ccc(O)cc1',
 'Cc1cccc(O)c1',
 'COc1ccccc1O',
 'COc1cccc(O)c1',
 'CCc1ccccc1O',
 'CCc1ccc(O)cc1',
 'CCc1cccc(O)c1',
 'CCCc1ccccc1O',
 'CCCc1ccc(O)cc1',
 'OCCO',
 'Oc1ccccc1O',
 'Oc1cccc(O)c1',
 'Cc1ccc(O)c(O)c1',
 'OC=O',
 'CC(O)=O',
 'CCC(O)=O',
 'CCCC(O)=O',
 'CCCCC(O)=O',
 'CCCCCC(O)=O',
 'CCCCCCC(O)=O',
 'CCCCCCCC(O)=O',
 'CCCCCCCCC(O)=O',
 'CCCCCCCCCCCC(O)=O',
 'CCCCCCCCCC(O)=O',
 'CCCCCCCCCCCCC(O)=O',
 'CCCCCCCCCCC(O)=O',
 'not found',
 'CCCCCCCCCCCCCCCC(O)=O',
 'CC(C)C(O)=O',
 'CCC(C)C(O)=O',
 'CC(C)CC(O)=O',
 'CC(C)(C)C(O)=O',
 'CCC(C)CC(O)=O',
 'CC(C)CCC(O)=O',
 'OC(=O)c1ccccc1',
 'Cc1ccccc1C(O)=O',
 'OC(=O)Cc1ccccc1',
 'OC(=O)CCCCCCCCC(O)=O']

# add the SMILES column to the dataframe
cdf.loc[:,"SMILES"] = smiles
cdf

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml	SMILES
0	1-alkanol	Methanol	1	4	1	32.04	-98.0	65.0	0.7910	CO
1	1-alkanol	Ethanol	2	6	1	46.07	-114.0	78.0	0.7890	CCO
2	1-alkanol	1-Propanol	3	8	1	60.09	-124.0	97.0	0.8040	CCCO
3	1-alkanol	1-Butanol	4	10	1	74.12	-89.0	118.0	0.8100	CCCCO
4	1-alkanol	1-Pentanol	5	12	1	88.15	-78.0	138.0	0.8140	CCCCCO
...	...	...	...	...	...	...	...	...	...	...
85	Branched alkanoic acid	4-Methylpentanoic acid	6	12	2	116.16	-33.0	200.0	0.9230	CC(C)CCC(O)=O
89	Benzoic acids	Benzoic acid	7	6	2	122.12	122.0	249.0	1.2660	OC(=O)c1ccccc1
90	Benzoic acids	2-Methyl-benzoic acid	8	8	2	136.14	107.0	258.0	1.0620	Cc1ccccc1C(O)=O
97	Phenyl- alkanoic acid	Phenylethanoic acid	8	8	2	136.14	77.0	266.0	1.2286	OC(=O)Cc1ccccc1
112	Alkanedioic acid	Decanedioic acid	10	18	4	202.24	131.0	374.0	1.2710	OC(=O)CCCCCCCCC(O)=O

78 rows × 10 columns

# cdf.to_csv("data/alcohol_acid_phys_data_cleaned.csv", index=False)

Let’s generate some descriptors for these molecules using RDKit.

There is a tutorial on calculating descriptors, and they are listed in the Getting Started guide.

There are two main stages:

1. Create RDKit molecules

2. Calculate descriptors

RDKit needs a RDKit.molecule to calculate the descriptors. You can create a separate list of molecules based on the SMILES strings in the dataframe, or you can use RDKit’s PandasTools module to work with them in a DataFrame.

Have a look at the molecular fingerprints notebook for some code to get started getting the RDKit molecules.

• Choose around 5 additional descriptors to calculate for each compound.

• It is up to you how you handle the calculations and getting the new data combined with the existing dataframe.

Here is one option:

• You could use the getMolDescriptors function in the descriptors tutorial as starting point to calculate the new descriptors and add them to dictionary that can be read into a dataframe.

• You can then use pd.concat to combine the dataframe with your thermochemical data with the new descriptors.

# To be safe, you can create a new dataframe. This will allow you to start from this point.

mols_df = cdf.copy()

# Drop the row for the compound whose SMILES string was not found on the server and reset the index.

mols_df = mols_df[mols_df["SMILES"] != "not found"].reset_index(drop=True)
mols_df

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml	SMILES
0	1-alkanol	Methanol	1	4	1	32.04	-98.0	65.0	0.7910	CO
1	1-alkanol	Ethanol	2	6	1	46.07	-114.0	78.0	0.7890	CCO
2	1-alkanol	1-Propanol	3	8	1	60.09	-124.0	97.0	0.8040	CCCO
3	1-alkanol	1-Butanol	4	10	1	74.12	-89.0	118.0	0.8100	CCCCO
4	1-alkanol	1-Pentanol	5	12	1	88.15	-78.0	138.0	0.8140	CCCCCO
...	...	...	...	...	...	...	...	...	...	...
72	Branched alkanoic acid	4-Methylpentanoic acid	6	12	2	116.16	-33.0	200.0	0.9230	CC(C)CCC(O)=O
73	Benzoic acids	Benzoic acid	7	6	2	122.12	122.0	249.0	1.2660	OC(=O)c1ccccc1
74	Benzoic acids	2-Methyl-benzoic acid	8	8	2	136.14	107.0	258.0	1.0620	Cc1ccccc1C(O)=O
75	Phenyl- alkanoic acid	Phenylethanoic acid	8	8	2	136.14	77.0	266.0	1.2286	OC(=O)Cc1ccccc1
76	Alkanedioic acid	Decanedioic acid	10	18	4	202.24	131.0	374.0	1.2710	OC(=O)CCCCCCCCC(O)=O

77 rows × 10 columns

# Add RDKit molecule objects to the dataframe. This code uses the PandasTools module from RDKit.

PandasTools.AddMoleculeColumnToFrame(mols_df, smilesCol="SMILES")
mols_df

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml	SMILES	ROMol
0	1-alkanol	Methanol	1	4	1	32.04	-98.0	65.0	0.7910	CO
1	1-alkanol	Ethanol	2	6	1	46.07	-114.0	78.0	0.7890	CCO
2	1-alkanol	1-Propanol	3	8	1	60.09	-124.0	97.0	0.8040	CCCO
3	1-alkanol	1-Butanol	4	10	1	74.12	-89.0	118.0	0.8100	CCCCO
4	1-alkanol	1-Pentanol	5	12	1	88.15	-78.0	138.0	0.8140	CCCCCO
...	...	...	...	...	...	...	...	...	...	...	...
72	Branched alkanoic acid	4-Methylpentanoic acid	6	12	2	116.16	-33.0	200.0	0.9230	CC(C)CCC(O)=O
73	Benzoic acids	Benzoic acid	7	6	2	122.12	122.0	249.0	1.2660	OC(=O)c1ccccc1
74	Benzoic acids	2-Methyl-benzoic acid	8	8	2	136.14	107.0	258.0	1.0620	Cc1ccccc1C(O)=O
75	Phenyl- alkanoic acid	Phenylethanoic acid	8	8	2	136.14	77.0	266.0	1.2286	OC(=O)Cc1ccccc1
76	Alkanedioic acid	Decanedioic acid	10	18	4	202.24	131.0	374.0	1.2710	OC(=O)CCCCCCCCC(O)=O

77 rows × 11 columns

# This code lists the available descriptors in RDKit. The first column is the index of the
# descriptor. This will be useful for selecting descriptors to calculate.
for idx, desc in enumerate(Descriptors.descList):
    print(f"{idx} {desc[0]}")

0 MaxAbsEStateIndex
1 MaxEStateIndex
2 MinAbsEStateIndex
3 MinEStateIndex
4 qed
5 SPS
6 MolWt
7 HeavyAtomMolWt
8 ExactMolWt
9 NumValenceElectrons
10 NumRadicalElectrons
11 MaxPartialCharge
12 MinPartialCharge
13 MaxAbsPartialCharge
14 MinAbsPartialCharge
15 FpDensityMorgan1
16 FpDensityMorgan2
17 FpDensityMorgan3
18 BCUT2D_MWHI
19 BCUT2D_MWLOW
20 BCUT2D_CHGHI
21 BCUT2D_CHGLO
22 BCUT2D_LOGPHI
23 BCUT2D_LOGPLOW
24 BCUT2D_MRHI
25 BCUT2D_MRLOW
26 AvgIpc
27 BalabanJ
28 BertzCT
29 Chi0
30 Chi0n
31 Chi0v
32 Chi1
33 Chi1n
34 Chi1v
35 Chi2n
36 Chi2v
37 Chi3n
38 Chi3v
39 Chi4n
40 Chi4v
41 HallKierAlpha
42 Ipc
43 Kappa1
44 Kappa2
45 Kappa3
46 LabuteASA
47 PEOE_VSA1
48 PEOE_VSA10
49 PEOE_VSA11
50 PEOE_VSA12
51 PEOE_VSA13
52 PEOE_VSA14
53 PEOE_VSA2
54 PEOE_VSA3
55 PEOE_VSA4
56 PEOE_VSA5
57 PEOE_VSA6
58 PEOE_VSA7
59 PEOE_VSA8
60 PEOE_VSA9
61 SMR_VSA1
62 SMR_VSA10
63 SMR_VSA2
64 SMR_VSA3
65 SMR_VSA4
66 SMR_VSA5
67 SMR_VSA6
68 SMR_VSA7
69 SMR_VSA8
70 SMR_VSA9
71 SlogP_VSA1
72 SlogP_VSA10
73 SlogP_VSA11
74 SlogP_VSA12
75 SlogP_VSA2
76 SlogP_VSA3
77 SlogP_VSA4
78 SlogP_VSA5
79 SlogP_VSA6
80 SlogP_VSA7
81 SlogP_VSA8
82 SlogP_VSA9
83 TPSA
84 EState_VSA1
85 EState_VSA10
86 EState_VSA11
87 EState_VSA2
88 EState_VSA3
89 EState_VSA4
90 EState_VSA5
91 EState_VSA6
92 EState_VSA7
93 EState_VSA8
94 EState_VSA9
95 VSA_EState1
96 VSA_EState10
97 VSA_EState2
98 VSA_EState3
99 VSA_EState4
100 VSA_EState5
101 VSA_EState6
102 VSA_EState7
103 VSA_EState8
104 VSA_EState9
105 FractionCSP3
106 HeavyAtomCount
107 NHOHCount
108 NOCount
109 NumAliphaticCarbocycles
110 NumAliphaticHeterocycles
111 NumAliphaticRings
112 NumAmideBonds
113 NumAromaticCarbocycles
114 NumAromaticHeterocycles
115 NumAromaticRings
116 NumAtomStereoCenters
117 NumBridgeheadAtoms
118 NumHAcceptors
119 NumHDonors
120 NumHeteroatoms
121 NumHeterocycles
122 NumRotatableBonds
123 NumSaturatedCarbocycles
124 NumSaturatedHeterocycles
125 NumSaturatedRings
126 NumSpiroAtoms
127 NumUnspecifiedAtomStereoCenters
128 Phi
129 RingCount
130 MolLogP
131 MolMR
132 fr_Al_COO
133 fr_Al_OH
134 fr_Al_OH_noTert
135 fr_ArN
136 fr_Ar_COO
137 fr_Ar_N
138 fr_Ar_NH
139 fr_Ar_OH
140 fr_COO
141 fr_COO2
142 fr_C_O
143 fr_C_O_noCOO
144 fr_C_S
145 fr_HOCCN
146 fr_Imine
147 fr_NH0
148 fr_NH1
149 fr_NH2
150 fr_N_O
151 fr_Ndealkylation1
152 fr_Ndealkylation2
153 fr_Nhpyrrole
154 fr_SH
155 fr_aldehyde
156 fr_alkyl_carbamate
157 fr_alkyl_halide
158 fr_allylic_oxid
159 fr_amide
160 fr_amidine
161 fr_aniline
162 fr_aryl_methyl
163 fr_azide
164 fr_azo
165 fr_barbitur
166 fr_benzene
167 fr_benzodiazepine
168 fr_bicyclic
169 fr_diazo
170 fr_dihydropyridine
171 fr_epoxide
172 fr_ester
173 fr_ether
174 fr_furan
175 fr_guanido
176 fr_halogen
177 fr_hdrzine
178 fr_hdrzone
179 fr_imidazole
180 fr_imide
181 fr_isocyan
182 fr_isothiocyan
183 fr_ketone
184 fr_ketone_Topliss
185 fr_lactam
186 fr_lactone
187 fr_methoxy
188 fr_morpholine
189 fr_nitrile
190 fr_nitro
191 fr_nitro_arom
192 fr_nitro_arom_nonortho
193 fr_nitroso
194 fr_oxazole
195 fr_oxime
196 fr_para_hydroxylation
197 fr_phenol
198 fr_phenol_noOrthoHbond
199 fr_phos_acid
200 fr_phos_ester
201 fr_piperdine
202 fr_piperzine
203 fr_priamide
204 fr_prisulfonamd
205 fr_pyridine
206 fr_quatN
207 fr_sulfide
208 fr_sulfonamd
209 fr_sulfone
210 fr_term_acetylene
211 fr_tetrazole
212 fr_thiazole
213 fr_thiocyan
214 fr_thiophene
215 fr_unbrch_alkane
216 fr_urea

# Adapted from https://greglandrum.github.io/rdkit-blog/posts/2022-12-23-descriptor-tutorial.html

def getMolDescriptors(mol, descriptor_list=None, missingVal=None):
    ''' calculate the full list of descriptors for a molecule

        missingVal is used if the descriptor cannot be calculated
    '''
    res = {}
    if not(descriptor_list):
        descriptors = Descriptors._descList
    # TODO: Add else clause to handle a list numbers corresponding to the descriptor indices
    else:
        descriptors = [Descriptors._descList[idx] for idx in descriptor_list]

    for nm,fn in descriptors:
        # some of the descriptor fucntions can throw errors if they fail, catch those here:
        try:
            val = fn(mol)
        except:
            # print the error message:
            import traceback
            traceback.print_exc()
            # and set the descriptor value to whatever missingVal is
            val = missingVal
        res[nm] = val
    return res

# These are the descriptors selected to calculate for the molecules.
# 118 NumHAcceptors
# 119 NumHDonors
# 27 BalabanJ - a topological descriptor expressing molecular connectivity and branching
# 28 BertzCT - a topological complexity index
# 83 TPSA - total polar surface area

descriptor_list = [118, 119, 27, 28, 83]


calc_descriptors = [getMolDescriptors(mol, descriptor_list=descriptor_list) for mol in mols_df["ROMol"]]

# Create a dataframe from the calculated descriptors
descriptor_df = pd.DataFrame(calc_descriptors)

# TODO: Add the descriptors to the dataframe as new columns

mols_df = pd.concat([mols_df, descriptor_df], axis=1)
mols_df

	Class	IUPAC name	#C	#H	#O	Molweight g/mol	mp / °C	bp / °C	density / g/ml	SMILES	...	NumHAcceptors	NumHDonors	BalabanJ	BertzCT	TPSA	NumHAcceptors	NumHDonors	BalabanJ	BertzCT	TPSA
0	1-alkanol	Methanol	1	4	1	32.04	-98.0	65.0	0.7910	CO	...	1	1	1.000000	2.000000	20.23	1	1	1.000000	2.000000	20.23
1	1-alkanol	Ethanol	2	6	1	46.07	-114.0	78.0	0.7890	CCO	...	1	1	1.632993	2.754888	20.23	1	1	1.632993	2.754888	20.23
2	1-alkanol	1-Propanol	3	8	1	60.09	-124.0	97.0	0.8040	CCCO	...	1	1	1.974745	5.245112	20.23	1	1	1.974745	5.245112	20.23
3	1-alkanol	1-Butanol	4	10	1	74.12	-89.0	118.0	0.8100	CCCCO	...	1	1	2.190610	11.119415	20.23	1	1	2.190610	11.119415	20.23
4	1-alkanol	1-Pentanol	5	12	1	88.15	-78.0	138.0	0.8140	CCCCCO	...	1	1	2.339092	15.900135	20.23	1	1	2.339092	15.900135	20.23
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
72	Branched alkanoic acid	4-Methylpentanoic acid	6	12	2	116.16	-33.0	200.0	0.9230	CC(C)CCC(O)=O	...	1	1	3.050078	76.597721	37.30	1	1	3.050078	76.597721	37.30
73	Benzoic acids	Benzoic acid	7	6	2	122.12	122.0	249.0	1.2660	OC(=O)c1ccccc1	...	1	1	2.981455	203.415953	37.30	1	1	2.981455	203.415953	37.30
74	Benzoic acids	2-Methyl-benzoic acid	8	8	2	136.14	107.0	258.0	1.0620	Cc1ccccc1C(O)=O	...	1	1	3.152941	253.189433	37.30	1	1	3.152941	253.189433	37.30
75	Phenyl- alkanoic acid	Phenylethanoic acid	8	8	2	136.14	77.0	266.0	1.2286	OC(=O)Cc1ccccc1	...	1	1	2.674242	215.959017	37.30	1	1	2.674242	215.959017	37.30
76	Alkanedioic acid	Decanedioic acid	10	18	4	202.24	131.0	374.0	1.2710	OC(=O)CCCCCCCCC(O)=O	...	2	2	2.989544	156.960812	74.60	2	2	2.989544	156.960812	74.60

77 rows × 21 columns

Back to visualisation

Using your new seaborn skills, visualise the distributions and identify any correlations in your new data.

You will probably find plots like pairplots or heatmaps of more use now that you have a few more variables.

Summary

• You have used the pandas library to clean and prepare a dataset, and to get descriptive statistics for the data.

• You have visualised distributions and relationships in the data to look for anomalies and patterns.

• You have used an API to obtain molecular identifiers/representations for a set of compounds.

• You have generated molecular descriptors for a set of compounds using RDKit.
